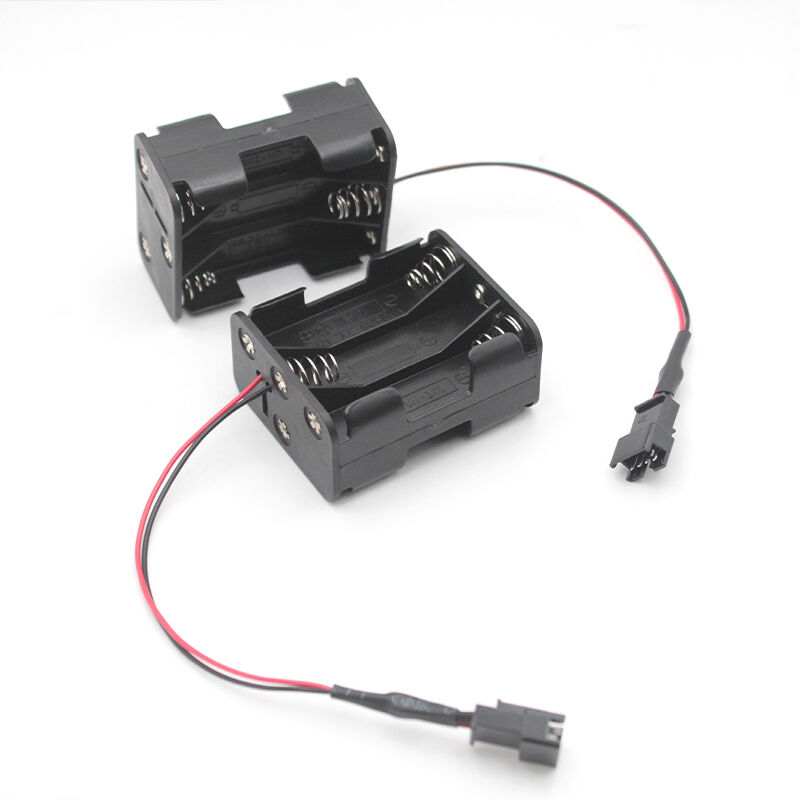

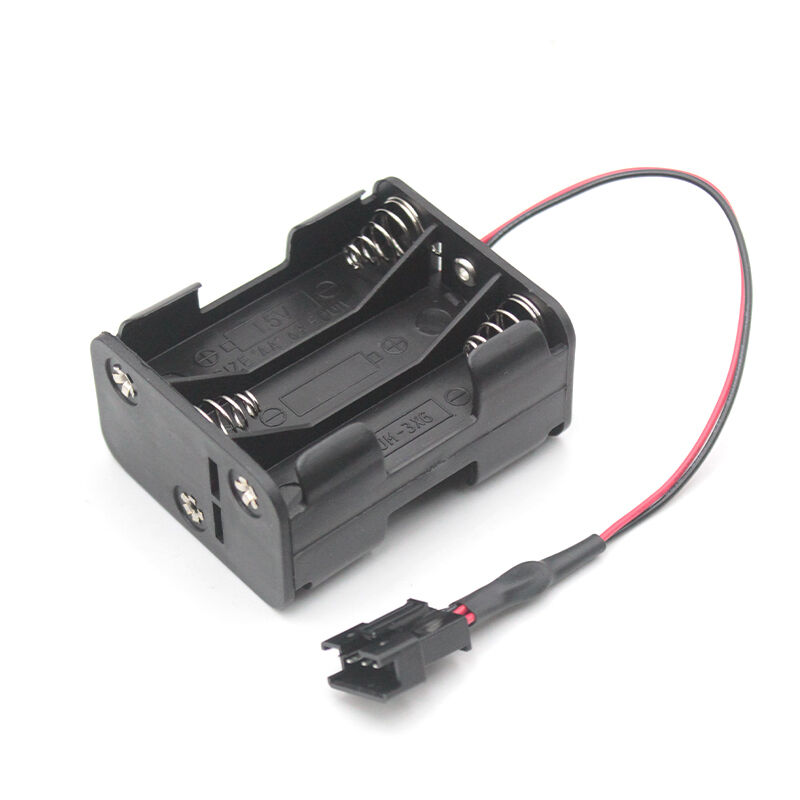

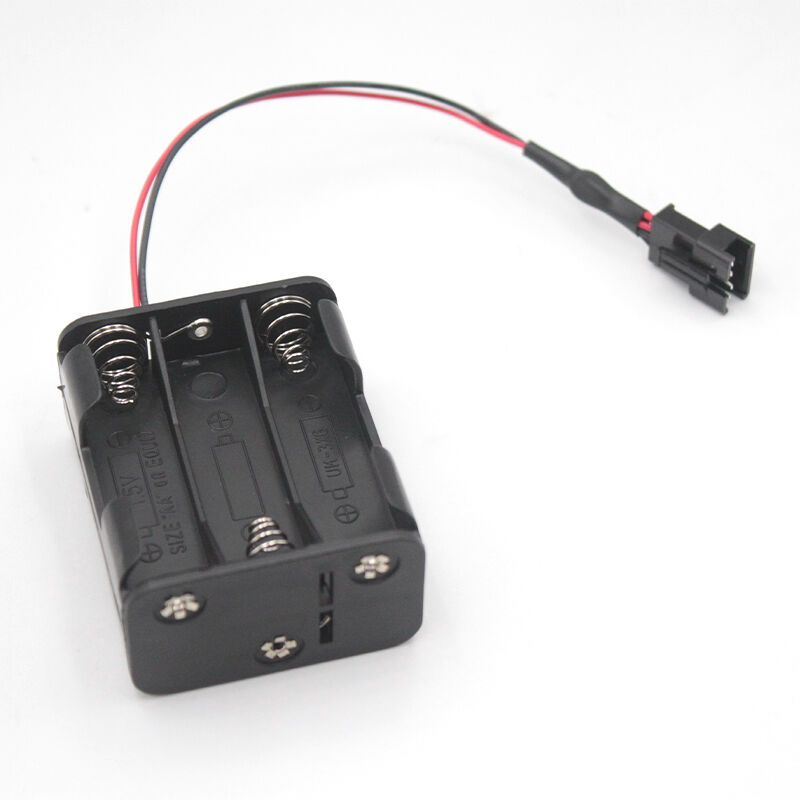

6 AA Cell Battery Holder with 9V DC Output and JST SM 4P Cable Connector

This 9V 6XAA battery holder is engineered to securely hold six AA batteries and deliver a convenient power connection for electronic equipment. Six 1.5V AA batteries connected in series produce a nominal 9V DC output, making this holder a reliable power source for a wide range of devices.

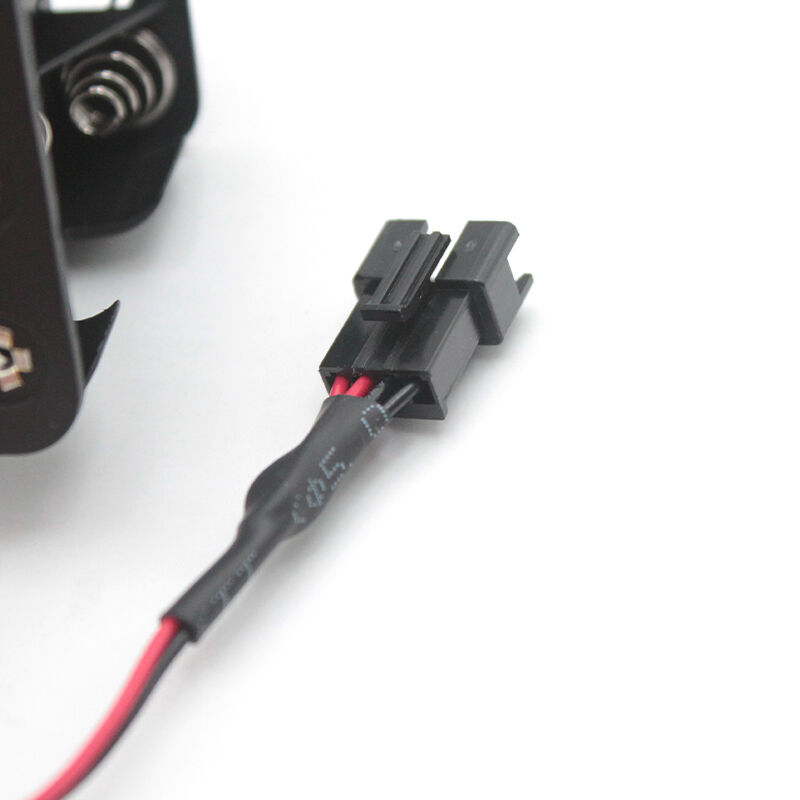

The holder is fitted with a 15cm insulated wire lead terminated with a JST SM 4P connector, enabling quick plug-in connection to compatible equipment without additional wiring or soldering. The durable plastic battery compartment features insulated construction that protects battery contacts and reduces short-circuit risks. Internal metal spring contacts ensure firm battery retention and stable electrical conductivity. The pre-wired JST SM 4P connector is ideal for electronic assemblies requiring detachable plug connections.

• Six AA cells connected in series provide a nominal 9V DC output
• JST SM 4P connector enables quick plug-in installation
• 15cm lead wire offers convenient connection and routing
• Separate battery compartments maintain secure battery positioning
• Reliable metal spring contacts ensure stable electrical connection
• Lightweight plastic housing suitable for portable applications
• Connector and cable specifications customizable for OEM projects

This 6-cell AA battery holder is suitable for a broad range of low-voltage electronic applications, including:

• Electronic projects and DIY electronics
• LED lighting systems
• Sensors and testing instruments
• Control modules and battery-powered prototypes
• Educational kits
• Portable equipment

The JST SM 4P connector makes this holder especially convenient for applications requiring removable wiring and fast field replacement.

1. Insert six AA batteries according to the polarity markings.
2. Confirm all batteries are installed correctly.
3. Connect the JST SM 4P plug to the matching socket.
4. Check device voltage and polarity before operation.
5. Remove batteries when the product will not be used for extended periods.

• Use six batteries of the same type and capacity.
• Do not mix old and new batteries.
• Check polarity before connecting the holder.
• Do not short-circuit the connector or battery terminals.
• Keep the battery holder away from moisture and excessive heat.
